Strip Foil

Technical Specifications

Foil Material : Fully Soft (0 temper) aluminum of alloy grade AA-8011 conforming to Aluminum Association, USA, and specification.

Foil thickness options : As specified in purchase order • 0.025 +/- 0.0020 mm (Foil gsm = 67.75 +/- 5.42) • 0.030 +/- 0.0024 mm (Foil gsm = 81.30 +/- 6.50) • 0.040 +/- 0.0032 mm (Foil gsm =108.40 +/- 6.67) Test procedure : By weighment with 10 cm x 10 cm sample

Foil Surface options : As specified in purchase order. • One side bright & other side matt • Both sides bright

Polymer Coating options : As specified in purchase order. Colorless polyethylene coating for sealing purpose, conforming to the applicable Government Regulations regarding direct contact with medicines and drugs. Standard Polymer Nominal Tolerance* Gauge Options (gsm) (+/- 10%) • 150 Gauge 34.5 +/- 3.45 • 180 Gauge 41.4 +/- 4.14

Printing & Lacquer Coating : Printing will be done as per Text, Layout and shade of Hand proof approved by the customer. For non-printed specification clear lacquer to be coated as a protective coating and good printability. Printing inks and lacquer coatings are capable to withstand 160ºC for 1 sec. dwell time.

Winding Direction : Printed or clear lacquer side is out in the finished reel unless otherwise specified in purchase order

Core : As specified in purchase order: Material: Plastic, Aluminum or Cardboard. ID - 70/76mm with a tolerance of +/- 1 mm

Splices : Butt type with 25 mm pressure sensitive adhesive tape. Avg. number of joints < 2 per reel

Reel O.D. : 80% of the reels in a consignment will have OD 250 +/- 10mm and rest may have smaller OD.

Roll width : As specified +/- 1.0 mm

Identification : Each reel is identified with a ticket having Reel No., Specification, and Mfg. date.

Packing : Pharma foil reels are packed in cardboard carton. Reels are wrapped with LDPE film and packed with corners and foam side protectors. Jumbo reels are packed in wooden box in suspended condition with necessary poly film wrapping, corners and foam side protectors.

Marking : Order No., Batch No., Gross & Net Wt. and any other details as agreed mutually with customer

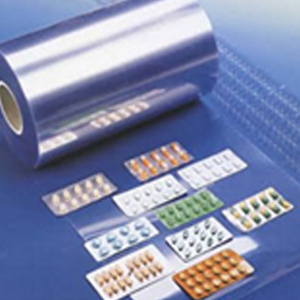

Blister Foil

Technical Specifications

Foil Material : Full hard (H18) aluminum of alloy grade AA-8011 conforming to Aluminum Association, USA, specification.

Foil thickness options : 0.020 +/- 0.016 mm (Foil gsm = 54.20 +/- 4.34) • 0.025 +/- 0.0020 mm (Foil gsm = 67.75 +/- 5.42) • 0.030 +/- 0.0024 mm (Foil gsm = 81.30 +/- 6.50)

Foil Surface options : One side bright & other side matt.

Sealant : Heat sealable lacquer coating wt.: 3 - 5 GSM, coating surface (dull or bright) will be as per purchase order. (Coating gsm options available – 4-6, 5-7, 6-8)

Printing & Lacquer Coating : Printing will be done as per Text, Layout and shade of Hand proof approved by the customer. For non-printed specification clear lacquer to be coated as a protective coating and good printability. Printing inks and lacquer coatings are capable to withstand 160ºC for 1 sec. dwell time.

Winding Direction : Printed or clear lacquer side is out in the finished reel unless otherwise specified in purchase order.

Core : As specified in purchase order: Material: Plastic, Aluminum or Cardboard. ID - 70/76mm with a tolerance of +/- 1 mm

Splices : Butt type with 25 mm pressure sensitive adhesive tape. Avg. number of joints < 2 per reel

Reel O.D. : 80% of the reels in a consignment will have OD 250 +/- 10mm and rest may have smaller OD. For Jumbo rolls OD will be 350 +/- mm

Reel Wander : Within +/- 1mm.

Roll width : As specified +/- 1.0 mm

Identification : Each reel is identified with a ticket having Reel No., Specification, and Mfg. date

Packing : Pharma foil reels are packed in cardboard carton. Reels are wrapped with LDPE film and packed with corners and foam side protectors. Jumbo reels are packed in wooden box in suspended condition with necessary poly film wrapping, corners and foam side protectors

Marking : Order No., Batch No., Gross & Net Wt. and any other details as agreed mutually with customer





Alu-Alu Cold Forming

Technical Specifications

Foil Material : Fully Soft (0 temper) aluminum of alloy grade AA-8011 conforming to Aluminum Association, USA, specification

Thickness Tolerance : 80 % of the length will be within +/- 5 %, 20 % of the length will be within +/- 8 %. Methodology of test : By weighment

Foil Temper : '0' (fully annealed)

Surface Finish : One side matt and other side bright finish

Total Grammage : 240 gsm with +/-8% tolerance

Foil Thickness : 25Micron OPA Film/Adhesive/45 Micron Aluminum foil/60 Micron PVC film (Total Thickness 145 Micron) with +/- 12 micron tolerance

Stickiness : Material shall unwind freely at maximum 1.5 Meter length load.

Wettability : When fully annealed wettability index will be 'A' - 'C' as per ASTM B 479 standard.

Core material : Aluminum / Steel / Cardboard

Core i.d : 76mm with +/-0.5mm Tolerance

Roll o.d. : 250-350 mm with +/-5mm Tolerance

Roll width : As per Customer Requirement (+/-0.5mm Tolerance)

ECV/Cup depth : 9mm minimum value

Splicing : Smooth ultrasonic welding joint for light gauge through out the web having 5mm to 7mm overlap. At splice foil will have 80 % of parent tensile strength

No. of splice : Average 2 per reel max

Rest on core : 4 mm max.

Winding Quality : Foil winding on the core will have straight build-up having a maximum interlayer shift of 0.5mm. Maximum telescopic will be 2 mm

Identification : Each reel is identified with a ticket having Reel No., Specification, Mfg. date and Number of joints.

Packing : Suspended packing on strong wooden pallets with adequate protection against corrosion or transit damage. Runner clearance 75 mm

Marking : Order No., Batch No., Gross & Net Wt. and any other details as agreed mutually with customer.





Futuristic Packaging Private Limited (FPPL) is a premium quality supplier of primary packaging materials for pharmaceutical & food packing materials based on Aluminium foil.
